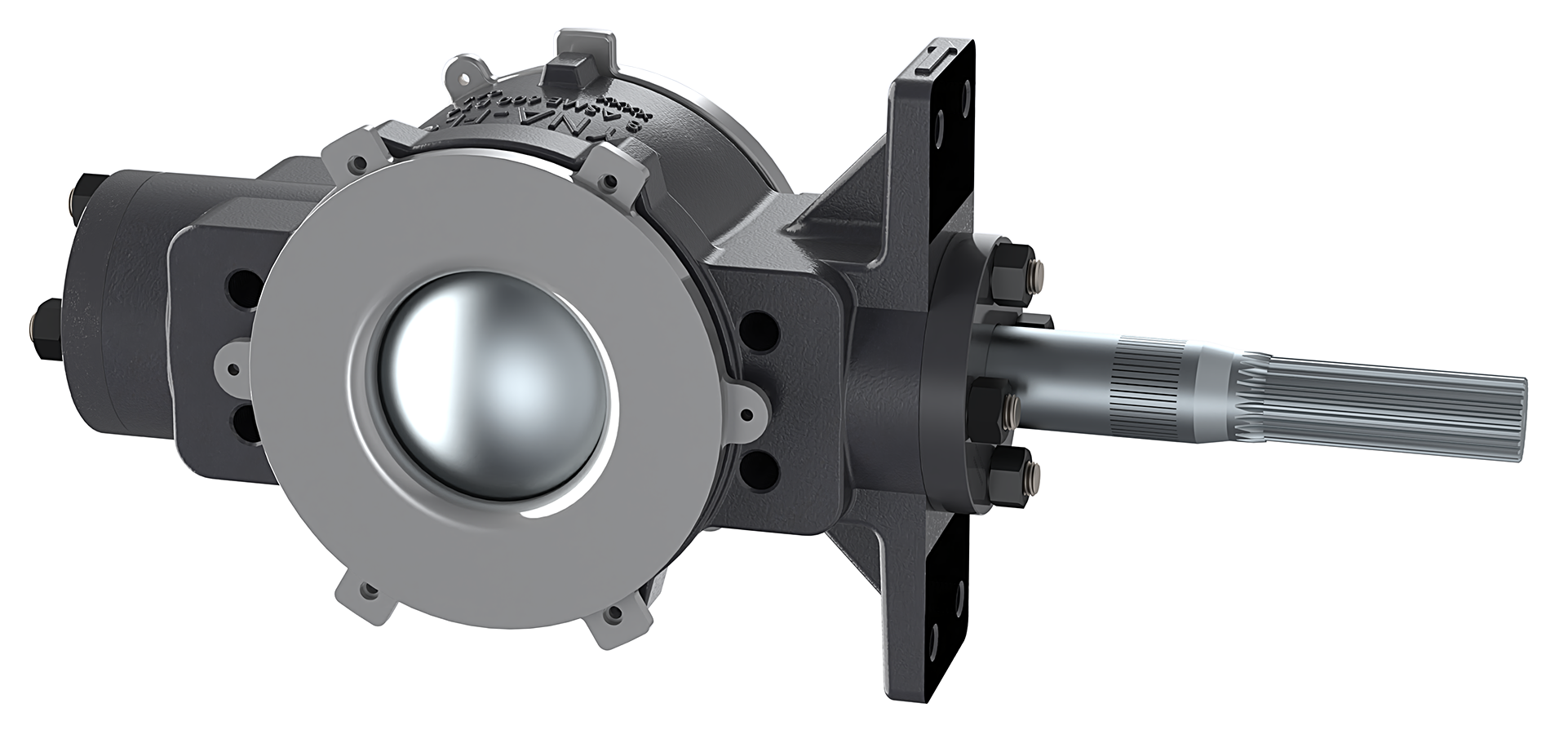

590 Flangeless Full Ball Control Valve

Flangeless full ball control valves suited for high flow, low pressure drop services.

4 to 16 inch NPS (100 to 400mm DN)
Quarter Turn Operation
Wafer End Connection
ASME B16.34 Class 600 & 900 Pressure Rating
ANSI/FCI 70.2 and IEC 60534-4 Class II & VI Shutoff

Model 590 full ball style control valves are used in all kinds of demanding applications, oil and gas production and chemical process industries. It is also suited to high flow, low pressure drop service. The 590 series is used in both throttling and on/off control of liquids or gases.

The straight through unrestricted flow path provides higher capacity than globe style valves. A splined shaft provides accurate control in throttling operations and flexibility in actuation options.

Overview

Positive ball-to-shaft connection
Splined and Keyed Shafts Available
Live Loaded Packing Standard
Standard NACE Construction
Other Material Options Available

Product Specifications

590 Valve Specifications

590 Available Configurations

SIZE	END CONNECTION
	RF AND RTJ FLANGELESS CONNECTION (WAFER)
	ASME CLASS 600	ASME CLASS 900
4" NPS (100mm DN)	ü	ü
6" NPS (150mm DN)	ü	ü
8" NPS (200mm DN)	ü	ü
10" NPS (250mm DN)	ü	ü
12" NPS (300mm DN)	ü	ü
16" NPS (400mm DN)	ü	û

590 Available Shutoff Classifications

AVAILABLE SHUTOFF CLASSIFICATION
VALVE TRIM		SHUTOFF CLASS
SINGLE SEAL		0.0001% OF MAXIMUM VALVE CAPACITY (LESS THAN 1% OF CLASS IV)
DUAL SEAL		0.0001% OF MAXIMUM VALVE CAPACITY (LESS THAN 1% OF CLASS IV)
FLOW RING		1% OF MAXIMUM VALVE CAPACITY
NOTES:	Classes and testing per ANSI/FCI 70-2 and IEC 60534-4.
	Tested at the service pressure drop, or 50 Psig (3.4 BARG), whichever is lower.
