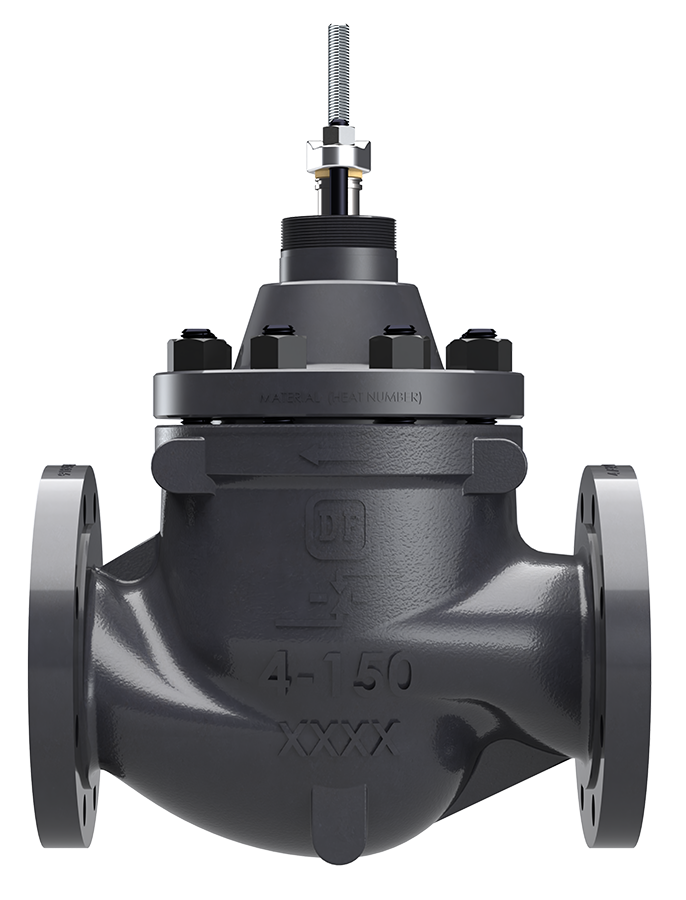

360 Series

General Purpose, Highly Configurable Control Valve

  • 1/2 to 8 inch NPS (15 to 200mm DN)
  • Globe and Angle Body Styles
  • RF |  RTJ  |  BWE  |  SWE  |  FNPT Available End Connections
  • ASME B16.34 Class 150 to 600 Pressure Rating
  • ANSI/FCI 70.2 and IEC 60534-4 Class II to VI Shutoff

More Details

360 Series control valves are heavy-duty globe and angle style valves perfect for general service or severe service applications. These valves are used in a variety of demanding environments, including oil and gas, chemical/ petro-chemical, power generation, water distribution and/or treatment, and general industries.

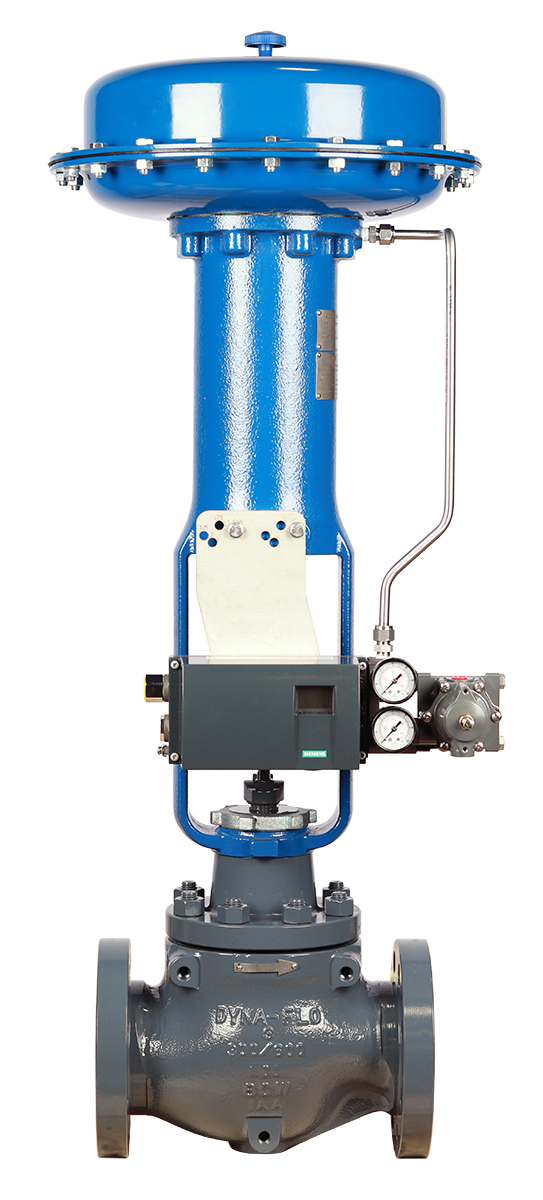

The standard actuator for 360 Series valves is a Dyna-Flo Model DFC (fail closed) or DFO (fail open) linear actuator. These heavy-duty actuators are spring and diaphragm style, and can be used for throttling or on-off service, with or without a valve positioner.

Overview



360 Series


MODEL DESCRIPTION PLUG TYPE SIZES SHUTOFF CLASS

360 Highly Configurable
General Purpose		 Balanced
 Cage Guided		 1 to 8 Inch NPS
(25 to 200 mm DN)		 IV / V / VI

361 High Temperature
General Purpose		 Balanced
Cage Guided		 1 to 8 Inch
(25 to 200 mm DN)		 II / III / IV

362 General Purpose Unbalanced
Cage Guided		 1 to 8 Inch NPS
(25 to 200 mm DN)		 IV / V / VI

363 Low Flow
General Purpose		 Unbalanced
Top Guided		 1/2 to 2 Inch NPS
(15 to 50 mm DN)		 IV / V / VI

  • Reduced Port, Anti-Cavitation and Low-Noise Trim Available
  • Metal Seating Standard - Soft Seats Available
  • Live Loaded Packing Available
  • NACE Options Available
  • Cryogenic Options Available

Print

|

Back to Top

Product Specifications



360 Valve Specifications

AVAILABLE CONFIGURATIONS
BODY SIZE END CONNECTION
FNPT RF AND RTJ (FLANGE CONNECTION) BWE SWE
ASME CLASS 150 ASME CLASS 300 ASME CLASS 600
GLOBE 1" NPS (25mm DN) ü ü ü ü ü ü
1-1/2" NPS (40mm DN)
2" NPS (50mm DN)
3" NPS (80mm DN) ü ü ü ü ü û
4" NPS (100mm DN)
6" NPS (150mm DN)
8" NPS (200mm DN)
ANGLE 1" NPS (25mm DN) û ü ü ü ü ü
2" NPS (50mm DN)
3" NPS (80mm DN) û ü ü ü ü û
4" NPS (100mm DN)
6" NPS (150mm DN)

VALVE TRIM SEAT OPTION SHUTOFF CLASS
ALL (EXCEPT ANTI-CAVITATION) PTFE (SOFT SEAT) STANDARD CLASS V (AIR TEST)
OPTIONAL CLASS V
CLASS V(1)
METAL STANDARD CLASS IV
OPTIONAL CLASS V(2)
CLASS VI(1)
ANTI-CAVITATION 1 STAGE METAL STANDARD CLASS IV
OPTIONAL CLASS V
ANTI-CAVITATION 2 STAGE METAL STANDARD CLASS V
NOTES: (1) Class V shut-off requires a spring-loaded seal ring, radius-seat plug, and wide-bevel seat ring. Not available with 8 inch port quick opening cages.
(2) Class VI shut-off requires a spring-loaded seal ring, radius-seat plug, and wide-bevel seat ring.

  • LCC
  • WCC
  • CF8M
  • WC9

CHARACTERISTIC PREFERRED FLOW DIRECTION
EQUAL PERCENTAGE (STANDARD) FLOW DOWN
QUICK OPENING FLOW DOWN
LINEAR FLOW DOWN
LOW-NOISE 3 (LINEAR) FLOW UP
ANTI-CAVITATION 1-STAGE (LINEAR) FLOW DOWN
ANTI-CAVITATION 2-STAGE (LINEAR) FLOW DOWN

Printable view

361 Available Configurations

AVAILABLE CONFIGURATIONS
BODY SIZE END CONNECTION
FNPT RF AND RTJ (FLANGE CONNECTION) BWE SWE
ASME CLASS 150 ASME CLASS 300 ASME CLASS 600
GLOBE 1" NPS (25mm DN) ü ü ü ü ü ü
1-1/2" NPS (40mm DN)
2" NPS (50mm DN)
3" NPS (80mm DN) û ü ü ü ü û
4" NPS (100mm DN)
6" NPS (150mm DN)
8" NPS (200mm DN)
ANGLE 1" NPS (25mm DN) û ü ü ü ü û
2" NPS (50mm DN)
3" NPS (80mm DN) û ü ü ü ü û
4" NPS (100mm DN)
6" NPS (150mm DN)

AVAILABLE SHUTOFF CLASSIFICATION
VALVE TRIM SEAL OPTION PORT DIAMETER SHUTOFF CLASS
ALL SINGLE GRAPHITE PISTON RING 1-5/16" TO 8" (33 TO 203 mm) STANDARD CLASS II
3-7/16" (87mm) OR LARGER OPTIONAL CLASS III
MULTIPLE GRAPHITE PISTON RINGS 3-7/16" (87mm) OR LARGER OPTIONAL CLASS IV
NOTES: In accordance with ANSI/FCI 70.2 and IEC 60534-4

  • LCC
  • WCC
  • CF8M
  • WC9

CHARACTERISTIC PREFERRED FLOW DIRECTION
EQUAL PERCENTAGE (STANDARD) FLOW DOWN
QUICK OPENING FLOW DOWN
LINEAR FLOW DOWN
LOW-NOISE 3 (LINEAR) FLOW UP

Printable view

362 Available Configurations

AVAILABLE CONFIGURATIONS
BODY SIZE END CONNECTION
FNPT RF AND RTJ (FLANGE CONNECTION) BWE SWE
ASME CLASS 150 ASME CLASS 300 ASME CLASS 600
GLOBE 1" NPS (25mm DN) ü ü ü ü ü ü
1-1/2" NPS (40mm DN)
2" NPS (50mm DN)
3" NPS (80mm DN) û ü ü ü ü û
4" NPS (100mm DN)
6" NPS (150mm DN)
8" NPS (200mm DN)
ANGLE 1" NPS (25mm DN) û ü ü ü ü û
2" NPS (50mm DN)
3" NPS (80mm DN) û ü ü ü ü û
4" NPS (100mm DN)
6" NPS (150mm DN)

AVAILABLE SHUTOFF CLASSIFICATION
VALVE TRIM SEAT OPTION SHUTOFF CLASS
ALL PTFE (SOFT SEAT) STANDARD CLASS VI
METAL STANDARD CLASS IV
PTFE (SOFT SEAT) OPTIONAL CLASS V
NOTES: In accordance with ANSI/FCI 70.2 and IEC 60534-4

  • LCC
  • WCC
  • CF8M
  • WC9

CHARACTERISTIC PREFERRED FLOW DIRECTION
EQUAL PERCENTAGE (STANDARD) FLOW UP (GLOBE BODY)
FLOW DOWN (ANGLE BODY)
QUICK OPENING FLOW UP (GLOBE BODY)
FLOW DOWN (ANGLE BODY)
LINEAR FLOW UP (GLOBE BODY)
FLOW DOWN (ANGLE BODY)
LOW-NOISE 3 (LINEAR) FLOW UP

Printable view

363 Available Configurations

AVAILABLE CONFIGURATIONS
BODY SIZE END CONNECTION
FNPT RF AND RTJ (FLANGE CONNECTION) BWE SWE
ASME CLASS 150 ASME CLASS 300 ASME CLASS 600
GLOBE 1/2" NPS (15 mm DN) ü ü ü ü ü ü
3/4" NPS (20 mm DN)
1" NPS (25mm DN)
1-1/2" NPS (40mm DN)
2" NPS (50mm DN)

AVAILABLE SHUTOFF CLASSIFICATION
VALVE TRIM SEAT OPTION SHUTOFF CLASS
ALL METAL STANDARD CLASS IV
OPTIONAL CLASS V
CLASS VI (MINIMUM SEAT LOAD 300 lbs/LINEAL INCH)
NOTES: In accordance with ANSI/FCI 70.2 and IEC 60534-4

  • LCC
  • WCC
  • CF8M
  • WC9

CHARACTERISTIC PREFERRED FLOW DIRECTION
EQUAL PERCENTAGE (STANDARD) FLOW UP
QUICK OPENING FLOW UP
LINEAR FLOW UP
DYNA-FORM (EQUAL PERCENTAGE) FLOW UP
DYNA-FLUTE 1 (EQUAL PERCENTAGE) FLOW UP
DYNA-FLUTE 3 (EQUAL PERCENTAGE) FLOW UP
DYNA-FLAT (EQUAL PERCENTAGE) FLOW UP

Printable view

360 Series Control Valve Documentation
