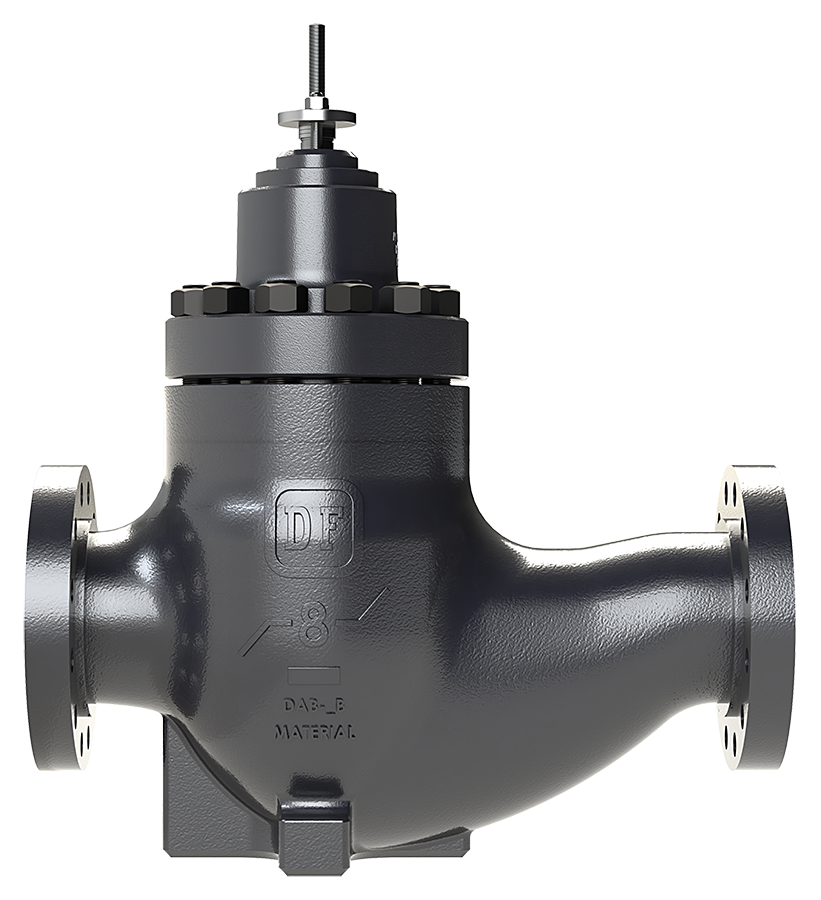

Cage guided control valves designed for high pressure applications.

  • 3, 4x3, & 8 inch NPS (80, 100x80, & 200mm DN)
  • Globe Body Style
  • RF |  RTJ  |  BWE Available End Connections
  • ASME B16.34 Class 900, 1500 & 2500 Pressure Rating
  • ANSI/FCI 70.2 and IEC 60534-4 Class II to V Shutoff

More Details

380 Series control valves are cage guided control valves with balanced plugs. Model 380 control valves are capable of Class V shutoff at process temperatures below 450°F (232°C). Model 381 control valves are well suited for general applications that do not require tight shutoff.

These valves are designed for high pressure applications and are used in oil and gas, chemical/ petro-chemical, power generation, water distribution and/or treatment, and general industries.

Overview



380 Series



MODEL DESCRIPTION PLUG TYPE SIZES SHUTOFF CLASS

380 High Pressure
General Purpose		 Balanced
 Cage Guided		 3, 4X3 and 8 Inch NPS
(80, 100X80 and 200 mm DN)		 IV / V

381 High Pressure
High Temperature		 Balanced
Cage Guided		 3, 4X3 and 8 Inch NPS
(80, 100X80 and 200 mm DN)		 II / III / IV / V
  • Anti-Cavitation and Low-Noise Trim Available
  • Metal Seating Standard
  • Live Loaded Packing Available
  • NACE Options Available
  • Other Material Options Available

Print

|

Back to Top

Product Specifications



380 Available Configurations

AVAILABLE CONFIGURATIONS
BODY SIZE END CONNECTION
RF AND RTJ (FLANGE CONNECTION) / BWE
ASME CLASS 900 ASME CLASS 1500 ASME CLASS 2500
GLOBE 3" NPS (80mm DN) û û ü
4X3" NPS (100X80mm DN) û û ü
8" NPS (200mm DN) ü ü û

AVAILABLE SHUTOFF CLASSIFICATION
VALVE TRIM VALVE SIZE SHUTOFF CLASS
ALL 3 & 4X3" NPS (80 & 100X80mm DN) STANDARD CLASS IV
OPTIONAL CLASS V
8" NPS (200mm DN) STANDARD CLASS IV
OPTIONAL CLASS V

  • LCC
  • WCC
  • CF8M

CHARACTERISTIC PREFERRED FLOW DIRECTION
EQUAL PERCENTAGE (STANDARD) FLOW DOWN
MODIFIED EQUAL PERCENTAGE FLOW DOWN
LINEAR FLOW DOWN

Printable view

381 Available Configurations

AVAILABLE CONFIGURATIONS
BODY SIZE END CONNECTION
RF AND RTJ (FLANGE CONNECTION) / BWE
ASME CLASS 900 ASME CLASS 1500 ASME CLASS 2500
GLOBE 3" NPS (80mm DN) û û ü
4X3" NPS (100X80mm DN) û û ü
8" NPS (200mm DN) ü ü û

AVAILABLE SHUTOFF CLASSIFICATION
VALVE TRIM VALVE SIZE SHUTOFF CLASS
ALL 3" NPS (80mm DN) STANDARD CLASS II
OPTIONAL CLASS III
4X3" NPS (100X80mm DN) STANDARD CLASS V
8" NPS (200mm DN) STANDARD CLASS III
OPTIONAL CLASS IV

  • LCC
  • WCC
  • CF8M

CHARACTERISTIC PREFERRED FLOW DIRECTION
EQUAL PERCENTAGE (STANDARD) FLOW DOWN
MODIFIED EQUAL PERCENTAGE FLOW DOWN
LINEAR FLOW DOWN

Printable view

380 Series Control Valve Documentation

Refer to our FloSpec software for product selection, sizing and ordering
