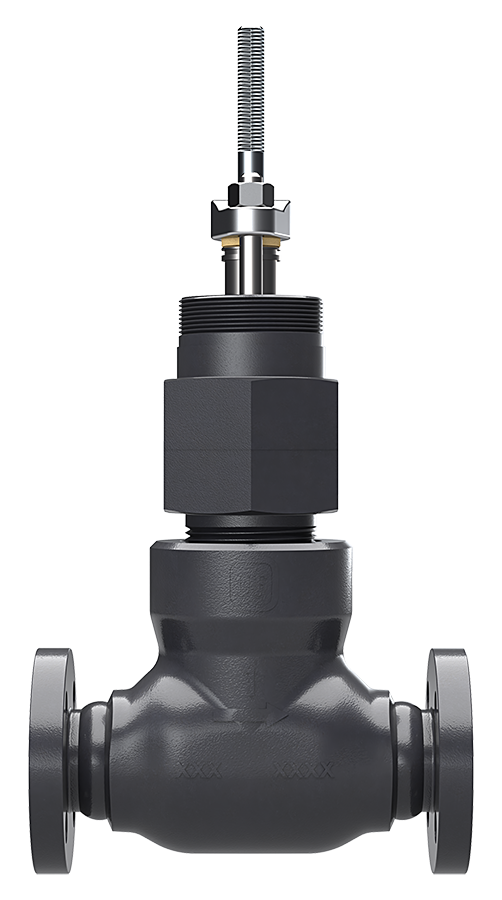

DF2000

Heavy duty control valve used in a variety of demanding low-flow applications for either throttling or on/off control.

1 & 2 inch NPS (25 & 50mm DN)
Globe & Angle Body Styles
RF | RTJ | NPT Available End Connections
ASME B16.34 Class 150-2500 Pressure Rating
ANSI/FCI 70.2 and IEC 60534-4 Class IV & V Shutoff

DF2000 control valves are post guided, single port valves used for high pressure/high temperature lower flow applications. These heavy-duty globe and angle style valves perfect for general service or severe service applications.

Overview

Options

Metal seating. Hard-faced or Tungsten Carbide available
Plug characterized trim with a wide range of port sizes
Live Loaded Packing Available
Standard NACE construction
Threaded bonnet and seat ring

Product Specifications

DF2000 Valve Specifications

DF200 Available Configurations

AVAILABLE CONFIGURATIONS
BODY	BODY SIZE	END CONNECTION	PRESSURE RATING
BODY	BODY SIZE	END CONNECTION	ASME CLASS 150	ASME CLASS 300	ASME CLASS 600	ASME CLASS 900/1500	ASME CLASS 1500	ASME CLASS 2500
GLOBE	1" NPS (25mm DN)	NPT	û	û	û	û	ü	û
		RF	ü	ü	ü	ü	û	û
		RTJ	û	ü	ü	ü	û	û
	2" NPS (50mm DN) 3X2" NPS (80X50mm DN) 4X2" NPS (100X50mm DN)	NPT	û	û	û	û	ü	ü
		RF	ü	ü	ü	ü	û	ü
		RTJ	û	û	ü	ü	û	ü
ANGLE	1" NPS (25mm DN)	NPT	û	û	û	û	ü	û
		RF	û	ü	ü	ü	û	û
		RTJ	û	ü	ü	ü	û	û
	2" NPS (50mm DN)	NPT	û	û	û	û	ü	ü
		RF	û	ü	ü	ü	û	ü
		RTJ	û	ü	ü	ü	û	ü

DF2000 Available Shutoff Classifications

AVAILABLE SHUTOFF CLASSIFICATION
VALVE TRIM	VALVE SIZE	SHUTOFF CLASS
ALL	ALL	STANDARD	CLASS IV
		OPTIONAL	CLASS V

DF2000 Standard Body Materials

LCC
CF8M

DF2000 Available Flow Characteristis

CHARACTERISTIC	PREFERRED FLOW DIRECTION
DYNA-FORM (EQUAL PERCENTAGE)	FLOW UP
DYNA-FLUTE 1 FLUTE (EQUAL PERCENTAGE)	FLOW UP
DYNA-FLUTE 3 FLUTE (EQUAL PERCENTAGE)	FLOW UP
